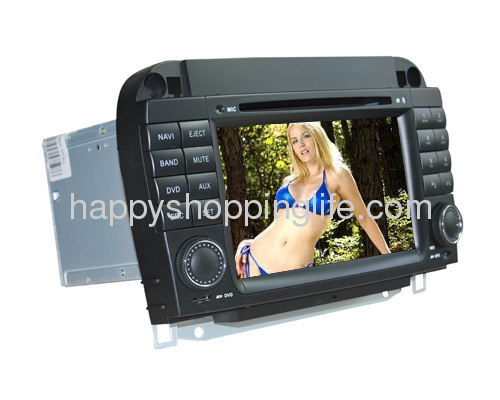

General function: 7 inch DVD player, Radio with RDS, fix with Mercedes Benz W220 S-Class 1998 - 2005, GPS navigation system with dual zone function, Digital TV DVB-T tuner built-in (MPEG-4), Bluetooth car kit, Touchscreen, USB port, SD card slot, IPOD ready, CAN Bus box to support original steering wheel controls and on board computer

Specification

* Special design for Mercedes Benz model

- Mercedes Benz S-Class W220 (1998-2005) (S280, S320, S350, S400, S430, S500)

* 7 Inch TFT HD display

* Resolution: 800 x 480

* Two Din standard

* Video Systems: PAL, NTSC, AUTO

* Discs support: DVD/ VCD/ CD/ MP3/ MPEG4/ DIVX/ CD-R/ WMA/ JPEG

* SD card slot, USB port support mp3, mp4, Divx, WM etc

* AM Frequency Range: 522~1710KHz (Worldwide)

* FM Tuning Range: 87.5~108.0MHz (Worldwide)

* Radio receiving: high sensitive AM/FM receiving mode, pre-setting 24 stations and programs

* RDS System: YES

* TMC: Traffic Message Channel (this funtion is optional, please tick the optional checkbox if you need it)

* CAN Bus box to support original steering wheel controls

* Air conditioner agreement, on board computer to support original car information display such as temperature, time, speed, fuel consumption

* Operation: Touch Screen, Remote Control, Front panel key-press

* External Memory:

- USB Driver: YES

- SD Card: YES

* Audio Information:

- Max Audio Output: 45W x 4

- Signal-To-Noise Ratio (SNR): 85db

- User adjustable EQ: Flat, Rock, POP, Jazz and Class

- User adjustable Sound: Bass, Treble, Balance and Fade

* GPS Information:

- GUI Interface: YES

- 3D type

- Touchscreen Interface: YES

- Operating System: WIN CE 6.0 Core

- Chip: newest pogram ARM11 of SIRF

- Dual Zone function: Yes

* Digital TV Tuner Information:

- DVB-T receiving standard: MPEG-4

- Automatic and Manual Search

* Bluetooth Information:

- Pair with mobile phone, then use touchscreen interface

- Dial, Answer, Stop Call

- Call History (Dialed, Received, Missed)

- Phone book

- Volume Control

- Touchscreen Keypad

* Car reverse reminder: With car reverse video signal input, connect with sorts of reverse mirror, view the car reverse status

* Media Inputs:

- DVD/CD disc slot

- GPS SD card slot

- SD card slot

- Mini USB input (front)

- GPS Antenna (rear)

- DTV Antenna (rear)

* AV Cables / Wires:

- Radio antenna port IN

- GPS antenna port IN

- DTV Antenna port IN

- IPOD connector

- Aux In L

- Aux In R

- Aux-Video IN

- Back Video Camera IN

- Subwoofer

- Video OUT x2

- Steering Wheel Control 1

- Steering Wheel Control 2

- RCA Audio OUT x2 (front L and R)

- RCA Audio OUT x2 (rear L and R)

- Left Front Speaker x2

- Right Front Speaker x2

- Left Rear Speaker x2

- Right Rear Speaker x2

* OSD Languages: English, German, French, Spanish, Dutch, Hungarian, Czech, Danish, Turkey, Norwegian, Swedish, Portuguese, Italian, Finland, Roumania, Greek, Russian, Polish

* Certifications: CE, FCC
